Panel brand

Huaxing, Huike (default A screen), BOE optional

Product color

Silver black/white

Product Type:

Touch PC all-in-one machine (supports X86 motherboard and OPS box).

Display type

LED LCD display

Physical resolution

1920*1080

Show color

10bit, 1.07B

Refresh rate

2K-60HZ

Brightness

Up to 350 cd/m2

Contrast

5000：1

Viewing Angle (Degrees)

178°

Backlight life

50,000 hours

Touch mode

Capacitance G+G

Touch-sensing technology

Capacitive Sensing Recognition Touch Technology (10 points).

Writing style

Fingers, styluses, or other non-transparent objects with a diameter of at least 5mm (multi-point 8mm)

Touch calibration

Software

Positioning accuracy

More than 90% of the touch area is ±2mm

Communication interface

Type B USB male

Touch interface

Tempered glass

Number of touches

Theories are infinite

Computer response

automatic recognition by the system; ≤8ms

Drivers

HID is exempt from driving

Touch function

Support 10-point computer touch operation

Support image enlargement, reduction, and rotation

Shell and appearance

The fuselage is made of metal sprayed metal cold-rolled steel plate, and the surface is 3.5mm tempered glass.

Color

Standard black (silver, white optional)

Operating voltage

AC110-220V

Maximum power consumption rate

≤90W

Standby power

≤2.5W

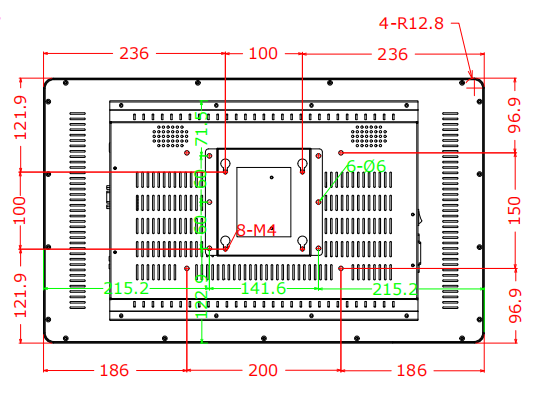

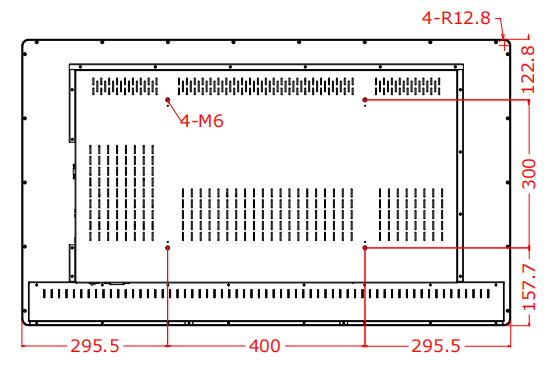

Installation method:

TV wall mount (optional mobile stand) as standard

Speaker specifications

10W / 8 ohm × 2 speakers

Environmental parameters

workplace

Indoors

Operating temperature

0°C - 40°C

Operating humidity

10% - 90% non-condensing

Storage temperature

-20°C - 60°C

Storage humidity

10% - 90% non-condensing

Type

Chipset

CPU

memory

hard drive

Graphics card

Low Profile / i3
configuration

Intel chipset

2 generations and above
Intel Core i3

Standard:
4G DDR3

Upgraded version
8G DDR3
16G DDR3

Standard:
128G SSD

Upgraded version
256G, 512G SSDs

Intel 核芯显卡Intel HD Graphics

Standard / i5
configuration

Intel chipset

2 generations and above
Intel Core i5

Standard:
8G DDR3

Upgraded version
8G DDR3
16G DDR3

Standard:
256G SSD

Upgraded version
256G, 512G SSDs

Intel 核芯显卡Intel HD Graphics

High Configuration/i7
configuration

Intel chipset

2 generations and above
Intel Core i7

Standard:
16G DDR3

Upgraded version
8G DDR3
16G DDR3

Standard:
512G SSDs

Upgraded version
256G, 512G SSDs

Intel 核芯显卡Intel HD Graphics

Interface configuration

output

1 HDMI, 1 VGA, 1 LINE headset (according to the actual interface of the optional computer host.) shall prevail).

Input

6 USB (USB2.0*3, USB3.0*3), 1 RJ45 network interface, 1 MIC interface, support wifi; (According to the physical product of the optional computer host)

operation

system

Windows 7 operating system

Choose one of two (WIN10 standard)

Windows 10 operating system

Note: 4K resolution requires CPU support for 4th generation and above, and if you have other configuration needs, you can customize the X86 motherboard or OPS.
