1

model

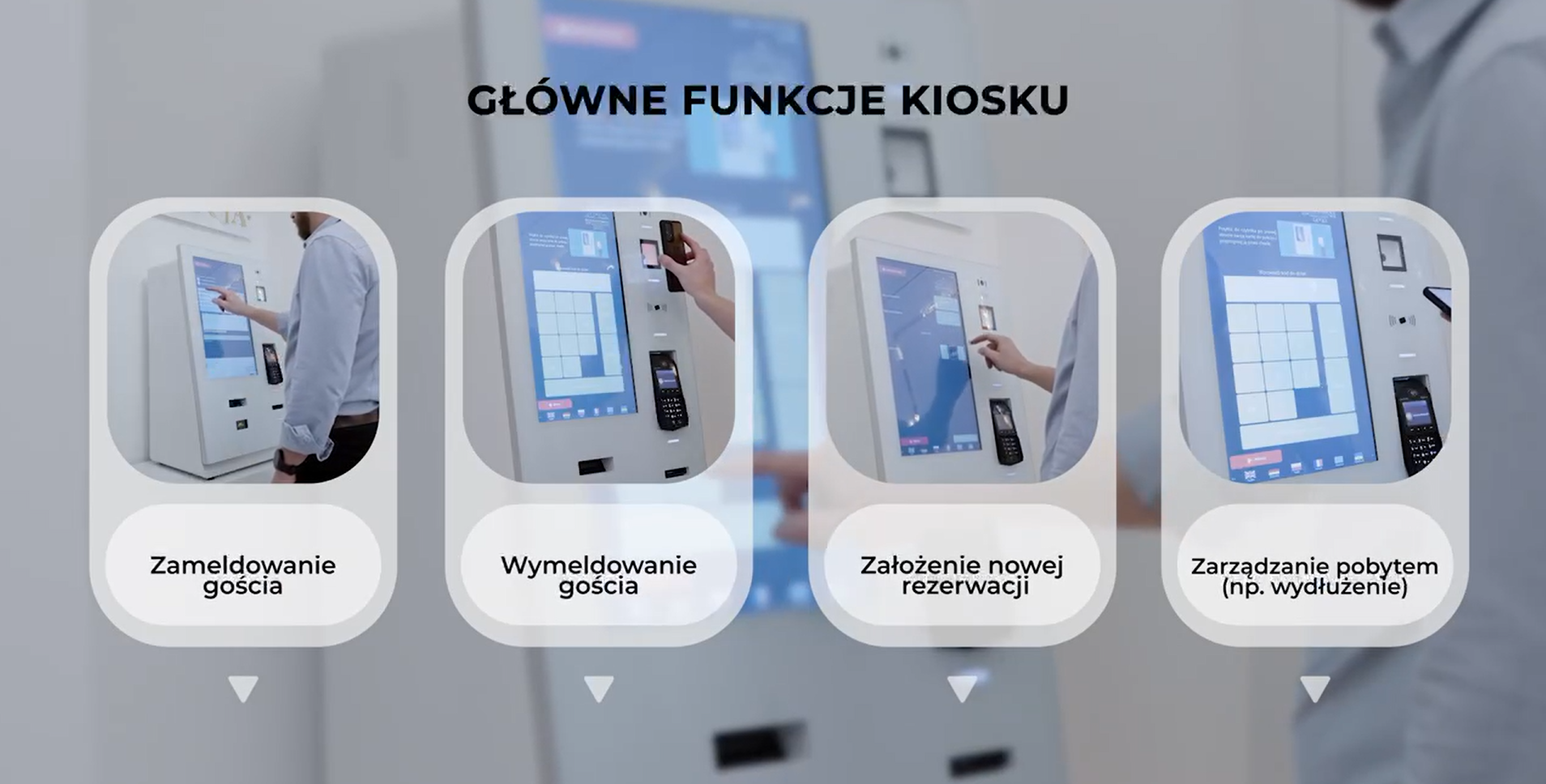

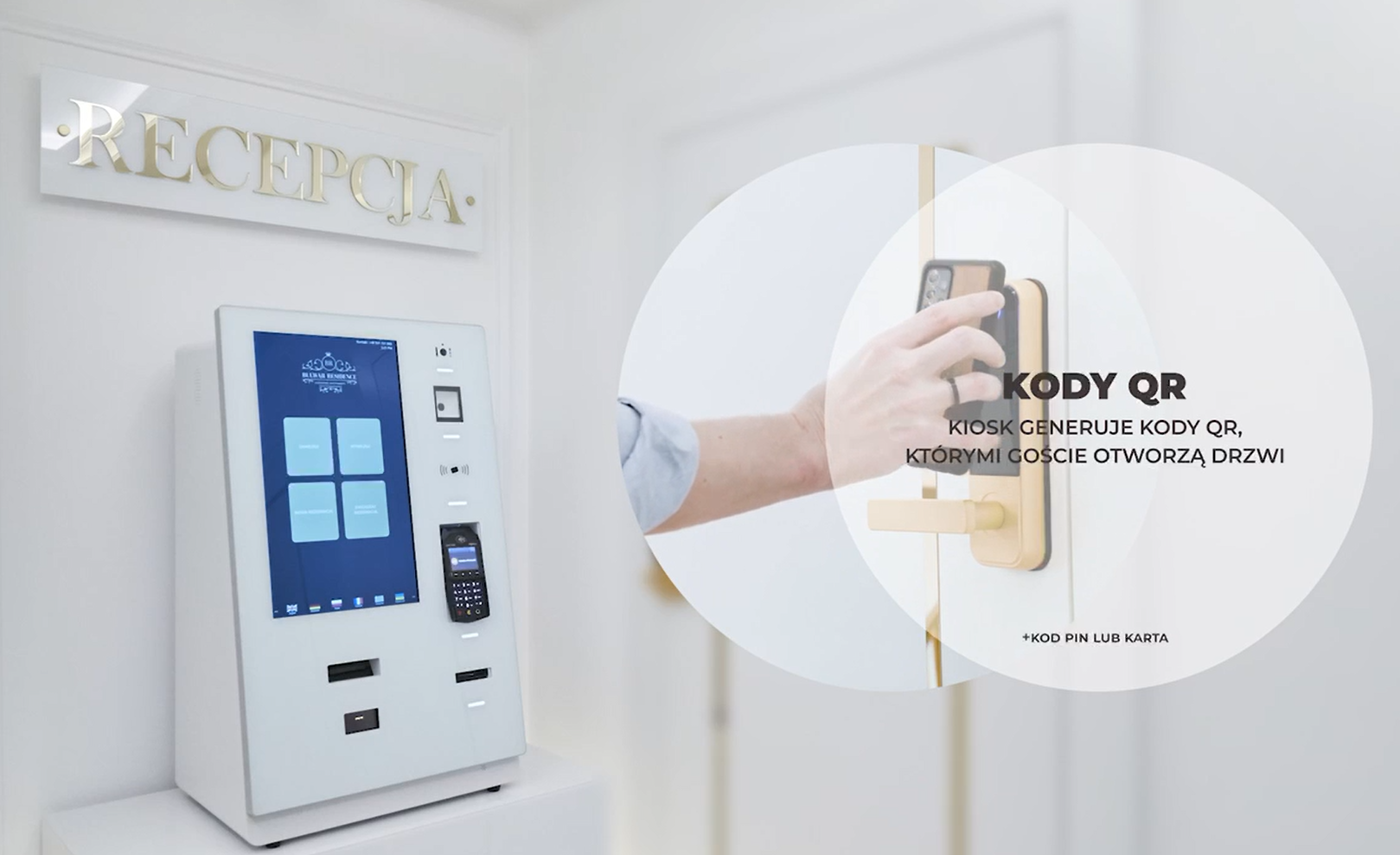

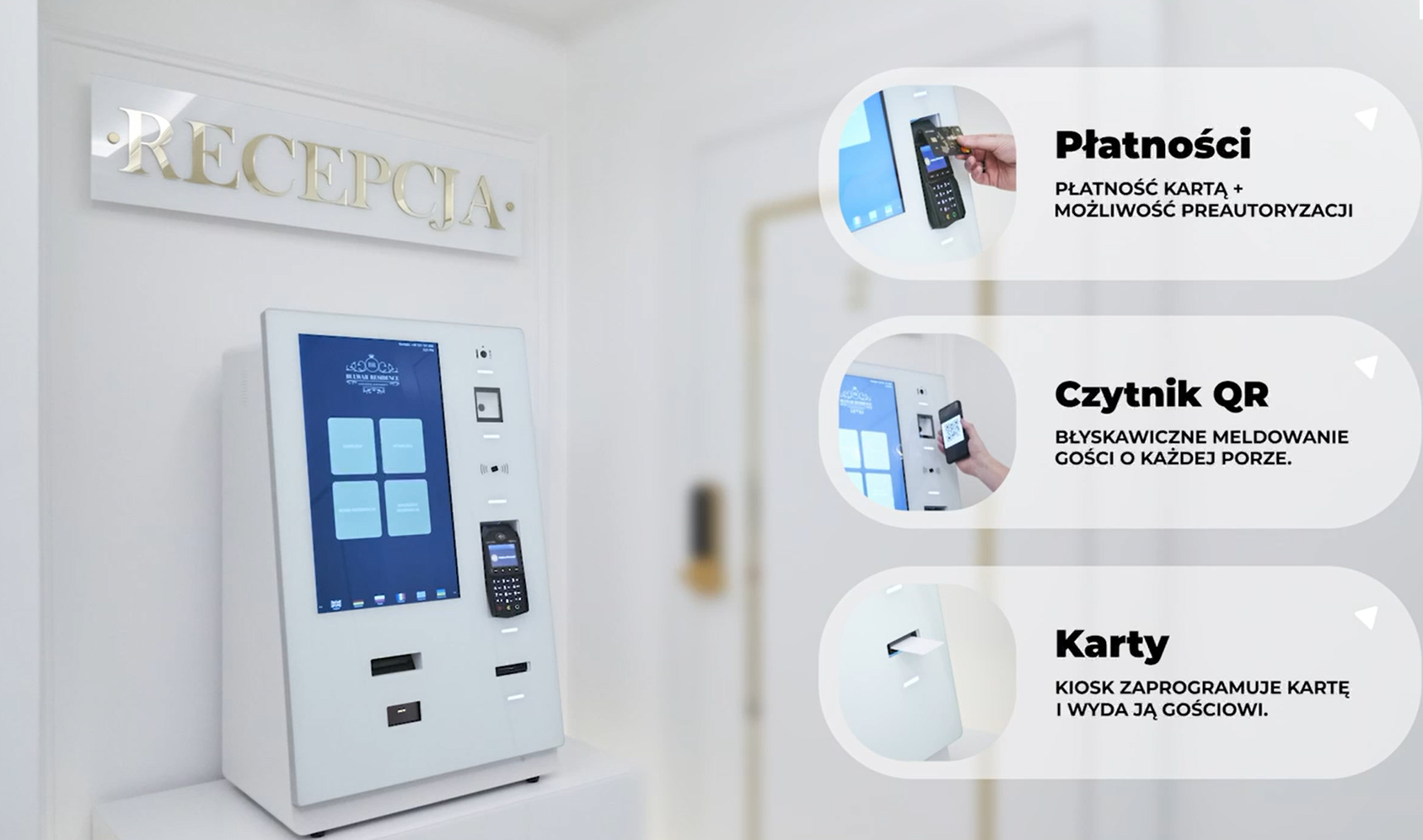

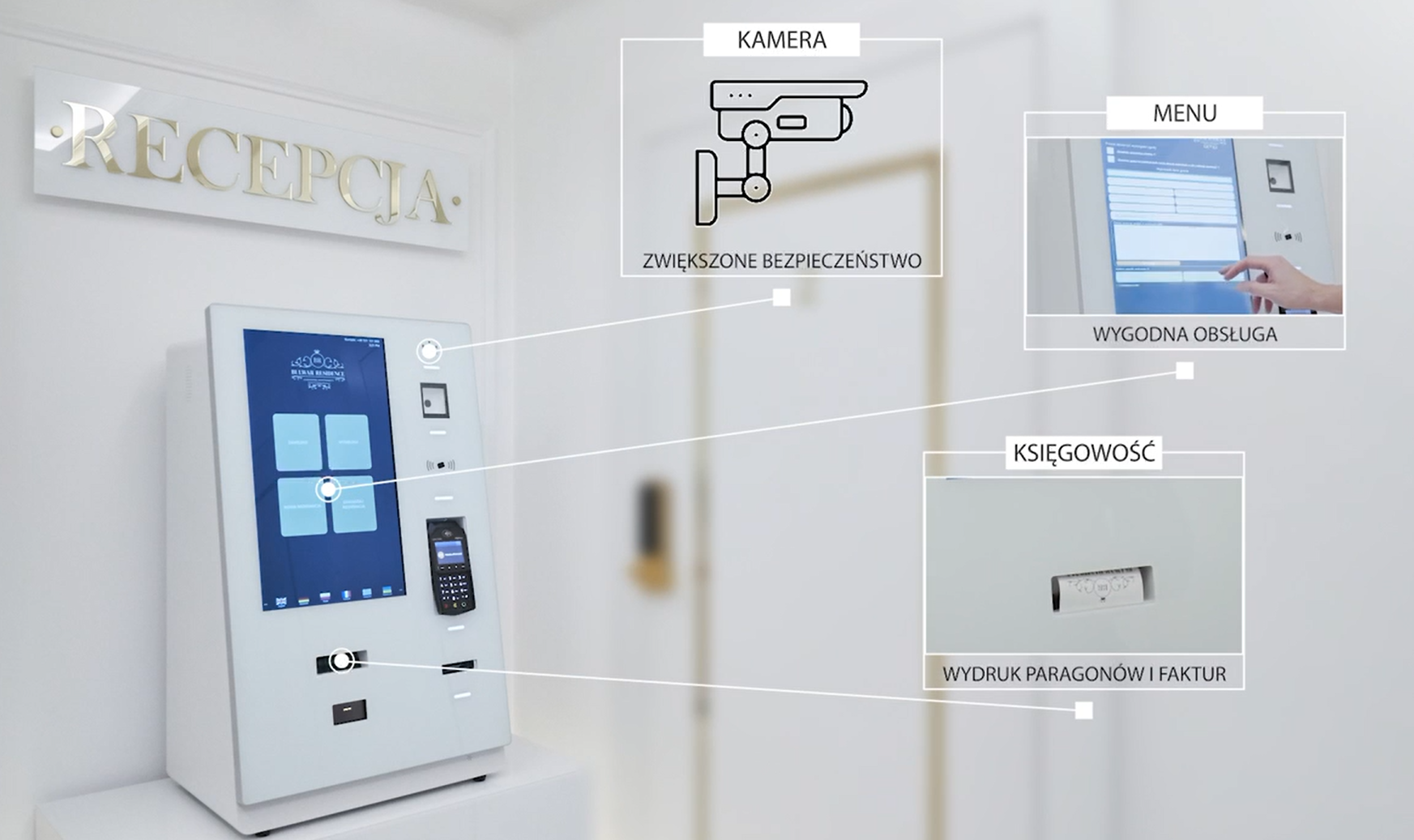

Hotel self-service machines

2

Basic configuration

Motherboard

I3

Run memory

4G

Storage memory

64G

Operating system

WIN7/WIN10/WIN8

Network support

3G, Ethernet, support WiFi/Bluetooth 4.0, wireless peripheral expansion

3

Display parameters

Screen specifications

21.5 inches

Screen type

TFT-LCD

Backlight type

WLED

Screen size

479.8 × 271.3 mm (H×V)

resolution

1920*1080

Contrast

3000:1

perspective

H:178°, V:178°

Brightness

250nits (no touch), 225nits (with touch)

Touch technology

Projected capacitance

Number of touchpoints

10 o'clock

Operating voltage

DC 3.3v

Operating temperature

0°C ~ 40°C, 20% ~ 80% RH.

Storage temperature

-20°C~ 60°C, 10% ~ 95% RH

Output interface

HDMMI 、LVDS/EDP

4

Motherboard parameters

processor

I3 4th generation

Chipset

CPU integration

Extension interface

2xMini-PCIE

shown

CPU integrated HD Graphics graphics core

Memory type

Support DDR3 1600/1333 MHz, 2 * SO-DIMM Slot, Up to 16GB

Storage interface

2 * Serial ATA 2.0 Ports + 1 * Serial ATA 3.0 Port [3]

BIOS

AMI UEFI BIOS

Plate type

Mini-ITX 170*170mm

Audio

Realtek ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports

1 * Amplifier, 6-W(per channel) into an 8-Ω Loads

6

NFC

Speed

12Mbps (full speed)

Voltage

Rated 5V current: 200mA (max), Standby (50mA), 100mA (standard).

Parameters

Standard ISO/IEC 18092 NFC, ISO 14443 Class A Class B FeliCa, Mifare protocol FeliCa protocol, T=CL protocol

Operating frequency

13.56MHZ

Operating distance

50mm

Reading speed

106kbps、212kbps、424kbps

7

Microphone

Operating voltage

DC5V

Operating current

200MA

Small operating voltage

4.5V DC

Large operating voltage

5.5V DC

Frequency range

100-100000HZ

Sensitivity

50db

8

Scan

Operating voltage

5v DC

Operating temperature

-20°C to 60°C

Operating current

75mA-100mA

Support coding

1D SUPPORT: industrial 25、 standard、 matrix 25、
china post 25、code 11、codabar、 MSI/Plessey、
code39(standard 39 & full ASCII code 39)、code 32、code
93、code128、UPCA、UPCE、EAN13、EAN8、UPC/EAN、
add-on 2/5、ISBN、ISSN、GS1(RSS) RSS-14、LIMITED、
EXPENDED、include GS1 STACK
2D SUPPORT: pdf417, data matrix ,qr code . ect.

Literacy mode

CMOS

Reading accuracy

≥8mil

Fill lighting

LED (6000K) 90lux @100mm

Light source intensity

265 LUX (130 mm)

Scan angle

Omnidirectional decoding

Scan speed

30 times/sec

resolution

640*480 pixel

Feedback on results

Buzzer

9

Camera

Supply voltage

5v

interface

USB2.0

Support system

winXP/win7/Linux2.6.20/安卓

Sensor type

AR0130

resolution

1920*1080

Pixels

1.3 million

Target distance

15cm-150cm

Lens

2.8mm-12mm

Focal length

2.37mm

perspective

88/50/70

Drive-free protocols are supported

Usb video class (UVC)

Sensitivity

5.5v/LUX-SEC@550MM

Video resolution

640*480-1280*960

10

NFC

Support cards

1. Card size: width: 55 mm, length: 86 mm

2. Thickness: 0.2mm--1.2mm (factory standard 0.8mm)

3. Contact IC card (compliant with ISO7816-2)

4. Contactless IC card

The card type that supports contactless cards is a Type A/B card that complies with the ISO14443 national standard.

Items

Content

Standard

ISO/14443 standard

Operating frequency

13.56 MHz

Communication rate with the RF card

105k bps

Communication mode

RS232 interface and USB (PCSC)

(RS232 supports multi-machine communication, and the factory address is 00 by default)

Working Conditions:

Working Voltage: DC24V±5%

Quiescent current: less than 200mA

Maximum Operating Current: 2.5A

Default baud rate: 9600 bits/s

Card stack load

The standard 0.76mm thickness non-braille card loading capacity is: 155 sheets

Recycling bin capacity

The standard card capacity is 25 sheets

(There are two types of card collection and loading methods available in this position: recovery chute and recovery channel)

Lifespan

Card issuance life: 1 million times

IC head stylus: 500,000 times

11

Environmental parameters

Work environment

Indoors

Operating temperature

0°C - 40°C

Operating humidity

10%-90% non-condensation

Storage temperature

‘-20°C - 50°C

Storage humidity

10%-90% non-condensation

12

Shipment of accessories

Expansion screws

4 (pcs)

Keys

2 (handle/door)

Certificate of conformity

1 (sheet)

Warranty card

1 (sheet)

13

Electrical parameters

Input voltage

Rated Voltage: 90(V/ac)~264(V/ac),50/60(Hz)

Maximum power consumption

≦130W

14

Mechanical features

Appearance

White sprayed on the front and black sprayed after

Shell material

Sheet metal front shell + galvanized mounting plate + sheet metal back shell

Body dimensions

980*380*161.5mm

Package size

The weight of the whole machine

Net Weight: 28(KG)

15

Host port description

①.DC-IN 12V ②.HDMI ③.VGA ④.USB2.0*1+USB3.0*1
(5).1000M LAN*1 /2xUSB2.0 (subject to the actual product)
⑥.1000M LAN*1 ⑦.Jack*2 3.5mm
